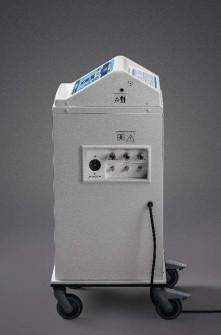

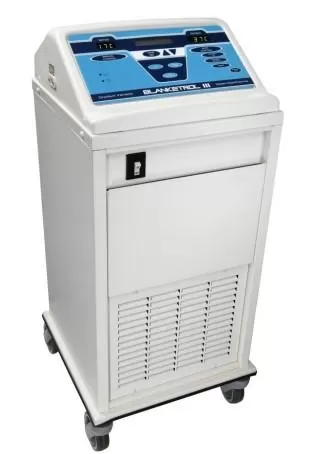

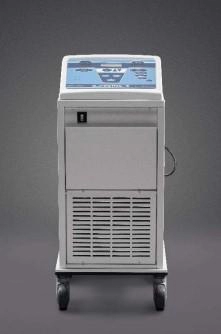

Patient Warmer - Cooler, Blanketrol III, Gentherm

Description

Patient Warmer - Cooler, Blanketrol III, Gentherm

Main features and technical specifications:
Designed for patient temperature control and regulation;
Water circulates through selected accessories in several modes: manual (where the operator sets the desired water temperature) or 3 automatic modes (where the system automatically adjusts water temperature based on the target patient body temperature).

• Water temperature range: 4° C – 42° C;
• Patient temperature range: 30° C – 40° C;
• Maximum heating capacity: ~3° C / min;
• Maximum cooling capacity: ~5.5° C / min.

Temperature control modes:

Manual modes:
• Manual temperature control;

Automatic modes:
• Automatic temperature control;
• Automatic 10°C gradient mode;
• Automatic variable gradient mode;
• SMART mode (used with gradient modes);
• Monitoring only.

In manual mode, the device can be used without a patient temperature sensor – only water temperature is set and monitored.
In automatic modes, the patient’s temperature is monitored and the water
temperature is adjusted accordingly.

Connections and compatibility:
• Compatible with skin surface and rectal/esophageal temperature sensors;
• Can connect up to 3 blankets/accessories simultaneously;
• Compatible with esophageal warming–cooling systems.

Safety:
• Audible and visual alarms;
• Dual safety systems for both high and low temperature conditions.

General parameters:
• Front-opening compartment for documents and accessories;
• Sterile water reservoir capacity: 7.5 l;
• Heating element: 800 W;
• Equipped with 4 wheels, 2 with brakes;
• Device weight (filled): 68.5 kg.

*Optional recommended set: 2 sets of water supply hoses for blankets / accessories (each 2.7 m long); 20 disposable adult blankets; 20 disposable temperature sensors (skin surface or esophageal / rectal).
